Description

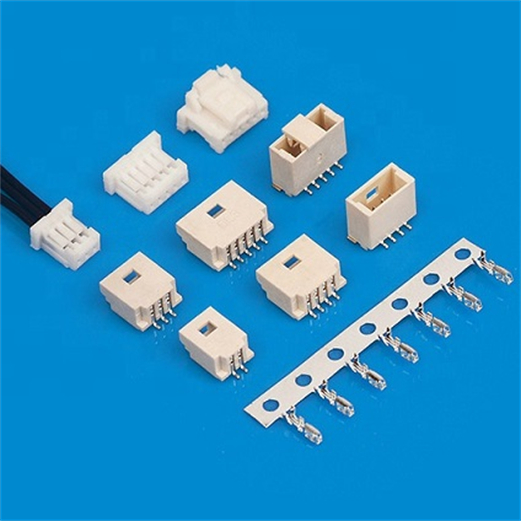

1.00mm Pitch 501330 501331 501568 wire to board connector
Order information:
PX1-XF6-1.00-XX-H
Pitch:1.00mm
XX-No.of 02~15 pins
H-Housing VM-Vertical SMT Pin RM-Horizontal SMT Pin T-Terminal
Specifications
◆Material: PA66 or LCP UL 94V-0,Natural
◆Contact : Phosphor Bronze
◆Plating : Plated Tin over Nickel
◆Current rating:1.0A AC,DC
◆Voltage rating:50V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:100MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
| Part No. | Description |
| PX1-XF6-1.00-T | 1.00mm Pitch 501330 501331 501568 wire to board connector,Terminal. |
| PX1-XF6-1.00-XX-H | 1.00mm Pitch 501330 501331 501568 wire to board connector,02~15 pins,Housing. |
| PX1-XF6-1.00-XX-RM | 1.00mm Pitch 501330 501331 501568 wire to board connector,02~05 pins,Horizontal SMT Pin. |
| PX1-XF6-1.00-XX-VM | 1.00mm Pitch 501330 501331 501568 wire to board connector,02~05 pins,Vertical SMT Pin. |
